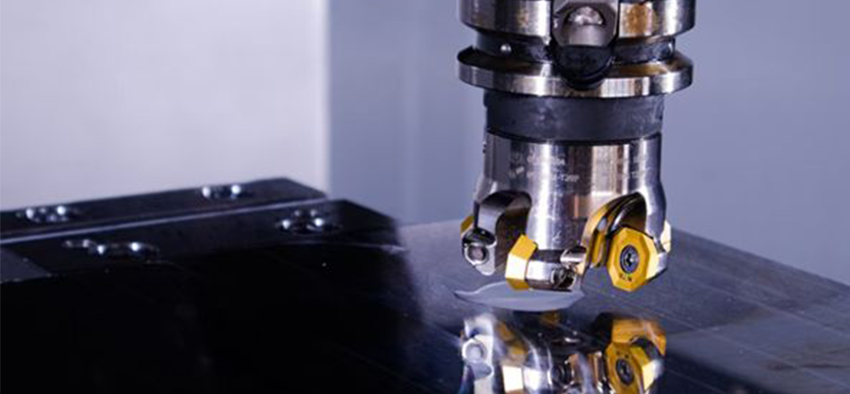

When you look at mill inserts, you may come across the term “ISO code.” But what does this code actually mean? What message does it convey? Knowing the ISO code of your milling insert is crucial to selecting the right tool for your milling operation and getting the best results. Whether you are an experienced machinist looking to expand your knowledge, or a newcomer looking to milling operations, this guide is here to demystify milling insert ISO codes. We will explore the interpretation of this code and how it interprets important information about the insert’s geometry, material and cutting characteristics. By the end, you’ll have the knowledge to interpret the code, allowing you to select the perfect milling insert to optimize your machining process.
To order milling inserts from us, please contact WhatsApp: +86 13890000254 or email: sales@marsloy.com

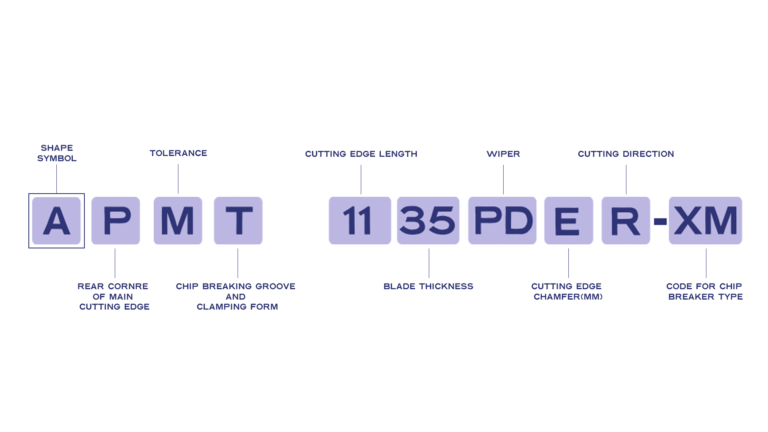

1. Shape of blade
The first part of the ISO code for milling inserts is about insert shape and style.

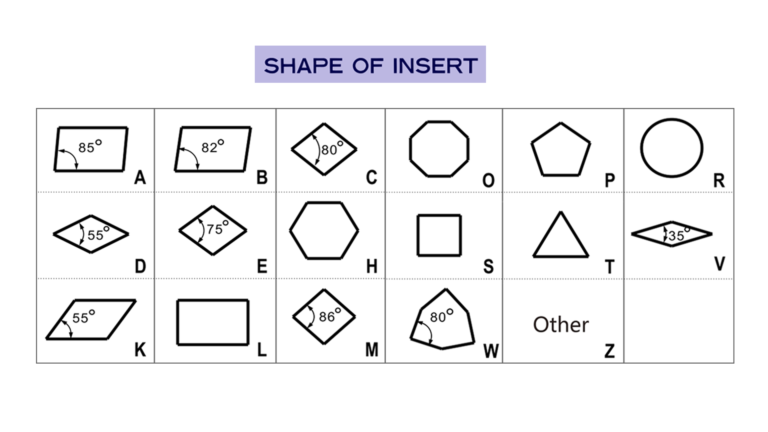

It starts with a letter that indicates the shape of the blade, such as R for round, S for square, T for triangle, D for rhombus, or C for rhombus. This gives an information about the overall form of the blade, aiding in quick identification. By looking at the first letter of a milling insert’s ISO code, you can get an initial idea of the insert’s shape, which plays an important role in determining its specific application and cutting capabilities.

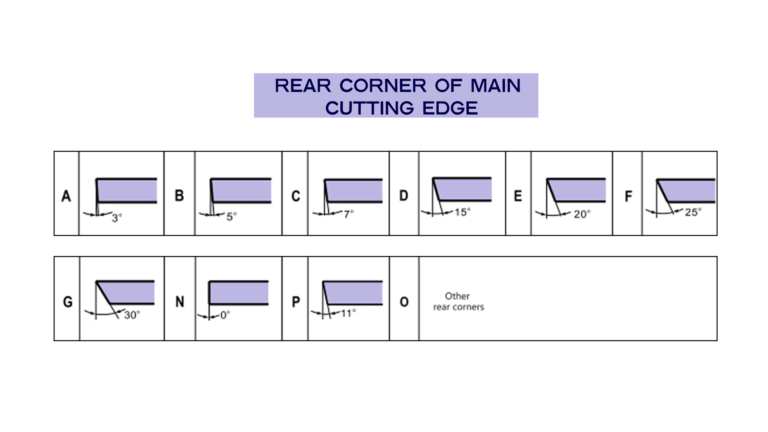

2. Insert rear angle
The second letter of the ISO specification for milling inserts refers to the insert relief angle. Milling insert relief angle is critical for efficient and successful machining operations. It plays a vital role in chip formation, tool life, cutting forces and surface finish. Understanding the impact of the relief angle and choosing the appropriate relief angle can greatly improve processing performance, productivity and finished product quality.

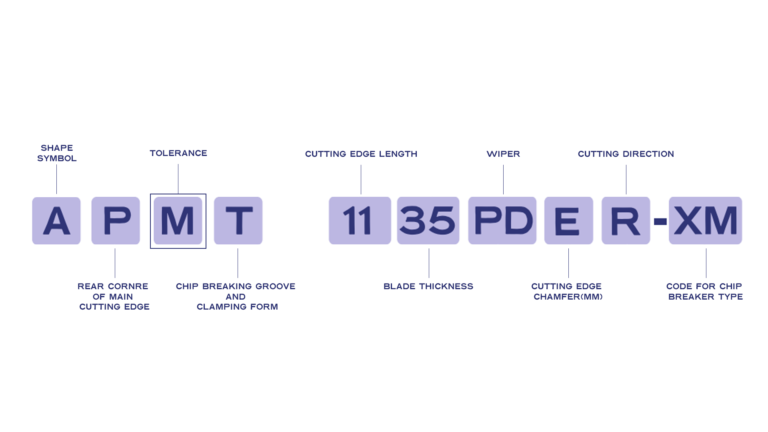

3. Tolerance

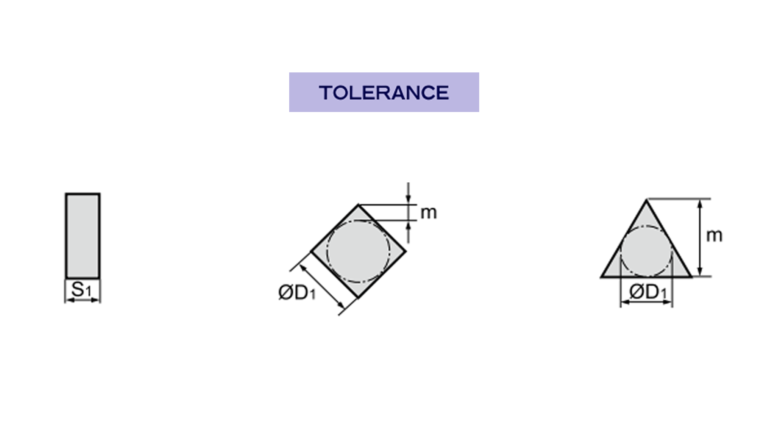

Position 3 determines the tolerance of the milling insert.
Tolerance refers to the allowed variation in the dimensions or measurements of a manufactured part. The tolerance classes specified in ISO No. 3 for milling inserts help determine a constant level of insert dimensional accuracy and machining quality.
Tolerances on milling inserts are important for several reasons. First, it ensures proper fit and compatibility with the tool holder, promoting stable and secure clamping during machining. Secondly, precise tolerances contribute to dimensional accuracy, allowing for constant and reliable machining results. Additionally, tight tolerances allow for interchangeability within the tooling system, minimizing downtime. They can also affect tool life and performance, as well as surface finish and accuracy.

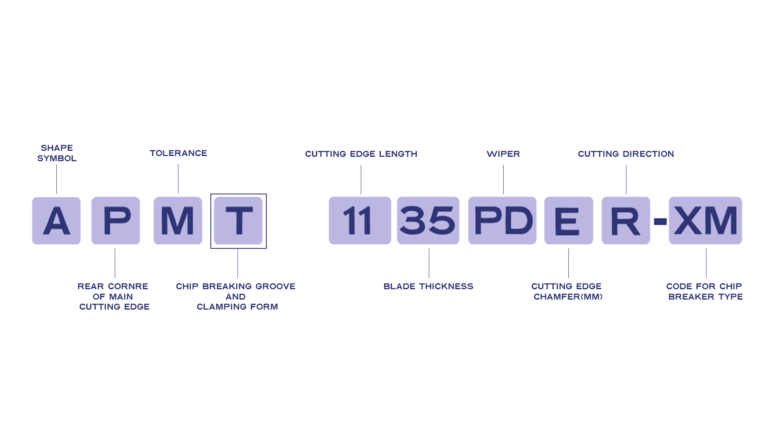

4. Section type
ISO number 4 refers to the cross-section type of the milling insert.
The cross-sectional type of a milling insert refers to the shape of its cutting edge when viewed from a vertical angle. It affects the cutting action and performance of the blade. Common cross-section types include square, circle, triangle, rhombus, and pentagon. Machinists should consider the cross-section type when selecting inserts to ensure optimal cutting capabilities and chip removal for their specific machining tasks and materials.
5. Cutting edge length/diameter IC

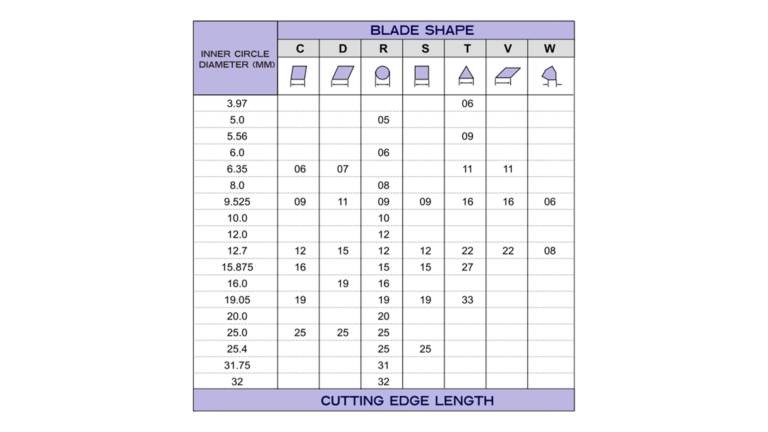

Position 5 provides details of the size or cutting edge length of the milling insert.
The cutting edge length of a milling insert is an important factor that directly affects the cutting performance and efficiency of the insert. Longer cutting edge length allows for a greater contact area between the blade and the workpiece, resulting in increased productivity and higher material removal rates. It enables the blade to come into contact with a larger surface area of the material, reducing the number of passes required to complete the machining operation. Therefore, choosing the right tip length is crucial to achieve optimal cutting performance, maximize productivity and ensure a cost-effective milling operation.

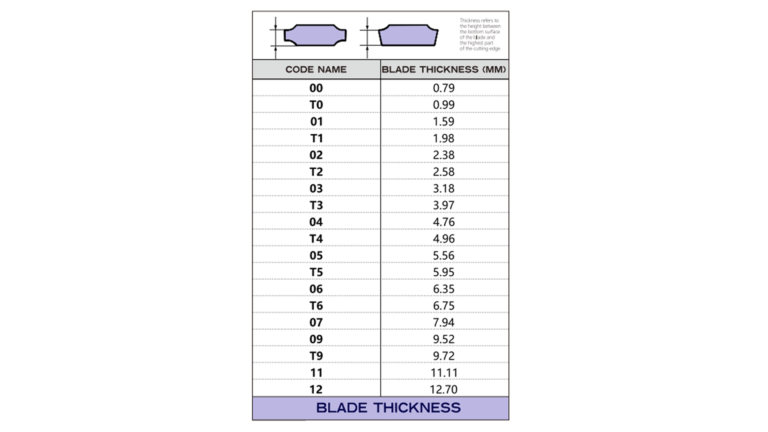

6. Thickness
Number 6 clarifies the thickness of the milling insert.
The thickness of the blade is critical to its strength and stability during cutting. Thicker inserts perform well under heavy loads, improving performance and minimizing the risk of edge breakage. Typically, double-sided (negative) blades have greater thickness than single-sided (positive) blades. Therefore, choosing the right thickness is crucial to achieve optimal cutting performance, productivity and the desired quality of the machined parts.
7. Tool tip fillet radius
Coming to position 7, we encounter information about the blade radius.
The radius of a milling insert is important for achieving precise and efficient machining operations while being able to apply the radius to your cut. Smaller radii tend toward finer cuts/finishing, while larger radii are better for heavy-duty metal removal due to the strength of the blade corners. Radius also affects the insert’s cutting forces, chip control, tool life and surface finish. Careful consideration of the appropriate head radius for specific machining requirements and materials is critical to achieving optimal performance, tool life and surface finish in milling operations.

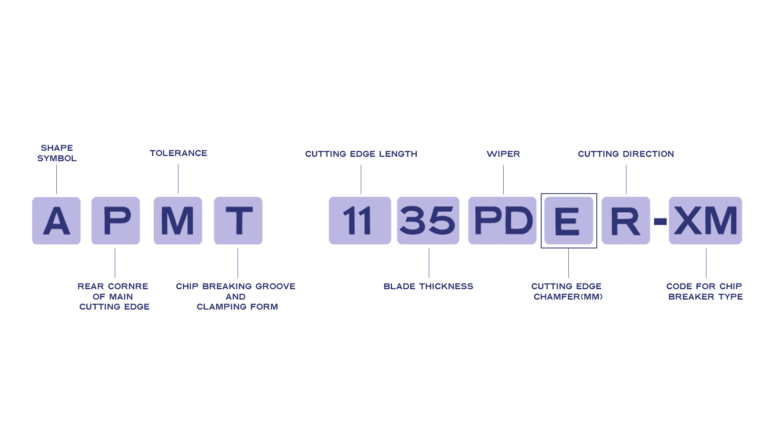

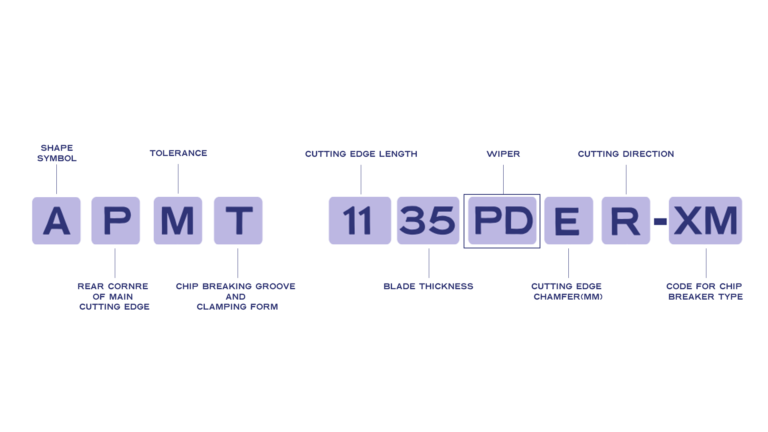

8. Blade information

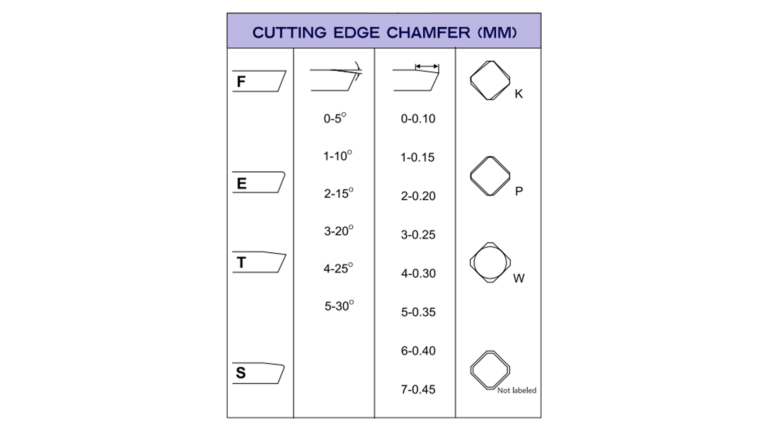

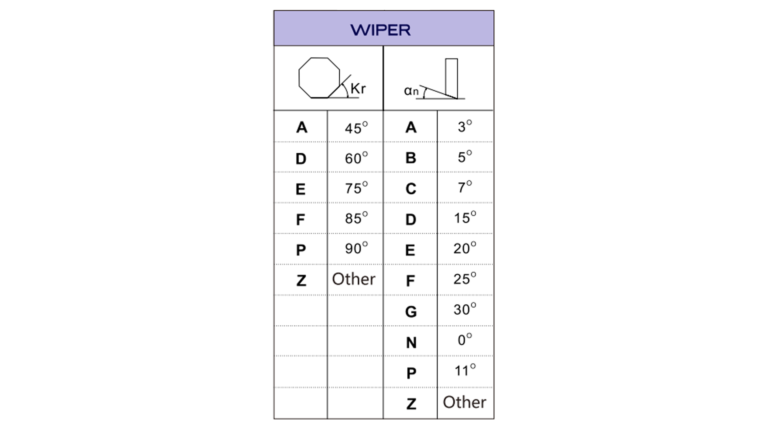

ISO number 8 for milling cutter inserts usually provides information about the cutting edge.
Edge preparation of milling inserts refers to the intentional additional treatment of the cutting edge of the insert before its use in milling operations. It involves applying specific treatments or coatings to improve the performance and durability of the blade.
By carefully selecting and applying appropriate cutting edge technology, machinists can improve machining performance, productivity and tool life while maintaining high-quality surface finish and dimensional accuracy.

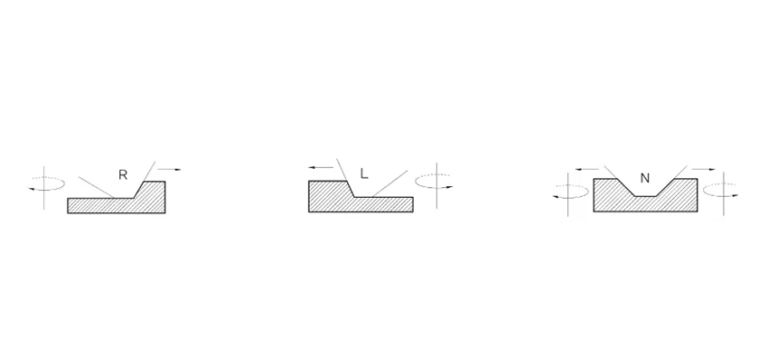

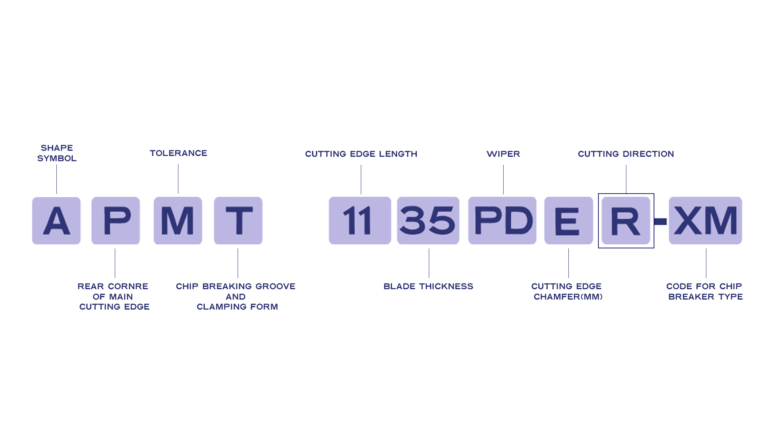

9. Left-hand Insert, right-hand Insert
The direction or direction of the cutting edge of a milling cutter insert and its corresponding shape.
It determines whether the insert is designed for right-handed (clockwise) or left-handed (counterclockwise) rotation during milling.
Using an insert with the correct hand orientation is critical to achieving efficient and precise machining results.

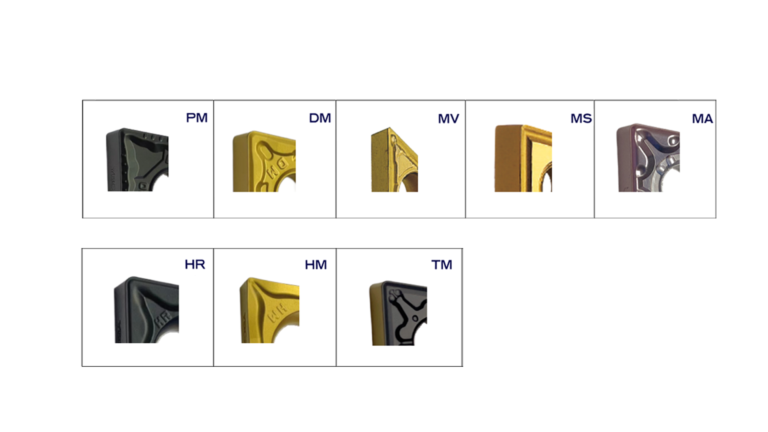

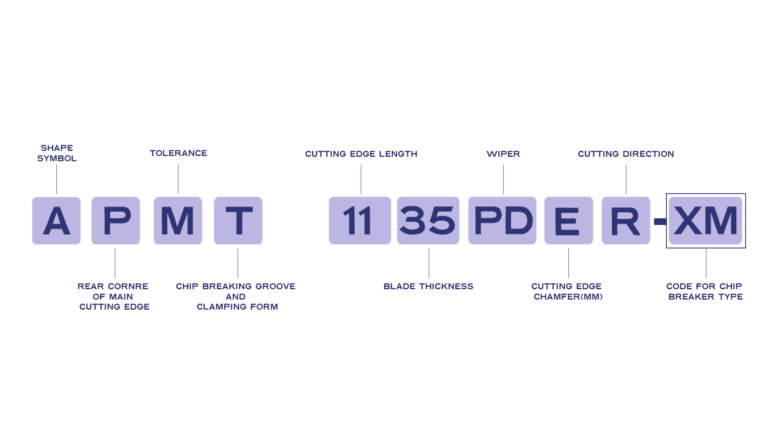

10. Chipbreaker design
Number 10 reflects the chip breaking design of the blade.
The chip breaking design of milling inserts refers to the specially designed geometry on the surface and cutting edge of the insert that helps control chip formation during the milling process. It plays a vital role in chip control, reducing the formation of chip clogging, tool jamming and built-up edge. Well-designed chip breaking is critical to ensuring a smooth and reliable machining process.
Summarize
Knowing the ISO code of a milling insert is like deciphering a secret language that is the key to successful milling operations and tool selection.
Each bit of the code provides valuable insight into the blade’s shape, size, tolerances and material grade. By revealing the meaning behind each part, machinists can confidently select the right milling insert, ensuring compatibility with machining settings and achieving desired results in performance, accuracy and tool life. Armed with this knowledge, you are ready to decode the milling insert ISO code and unlock the potential of your milling operations.
